Frequently Asked Questions

Evodash Digital Dashboard FAQ

Is the Evodash SVA approved?

Yes the Evodash will meet the UK SVA requirements, assuming it is fitted correctly and calibrated according to our instructions. It has the required lights, speed units and odometer to meet the legislation.

What are the Fascia options?

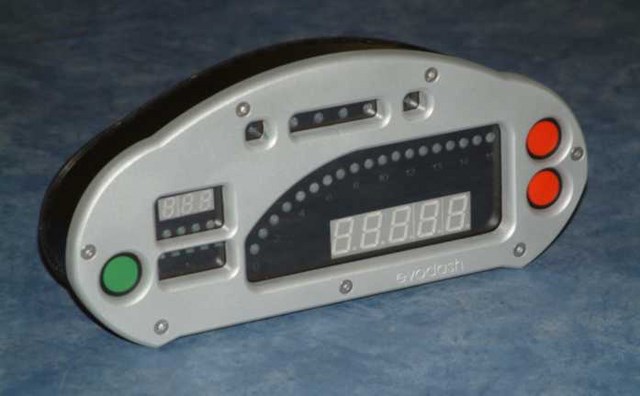

There are currently two options for the fascia; Aluminium and Carbon Fibre.
We can provide a custom milling service to allow fitting into your dashboard. Your material must be flat and accessible from both sides in the area that the Evodash is to be fitted. email us to discuss suitability and pricing.

Can I alter anything else?

Yes! The buttons can be individually changed to Red, Yellow, Black, Green or Grey by special request. The LEDs can also be changed to a Blue colour theme.

What is the thread size on the temperature sensor?

10mm * 1mm pitch.

How can I order spares?

Call us or email for current pricing on spares.

I don't live in the UK, can I order an Evodash?

Yes - we can post to most parts of the world. Contact us to find out about overseas postage rates.

Can I get an Evodash in kph?

A standard Evodash can be configured in software to read in mph or kph - no need to order a special unit.

I've got a sequential motorbike gearbox, will the Evodash work with it?

Yes. There is an Auxiliary LED on the dash that may be wired for any use - typically it will be used to show when you are in neutral. It does not have a gear indicator.

Where do I mount the speed sensor?

The speed sensor is mounted on the driveline after the gearbox. Typically people mount it next to one of the universal joints to detect the 4 bolts as they go round. The speed sensor detects metal - no need to glue little magnets on to any fast moving parts for them to fly off! In the software setup on the Evodash you tell it how many pulses it gets per rev of the driveline and the circumference of the wheel. The engine revs are detected separately.

How does the fuel gauge display the status?

The fuel gauge measures fractions of full; the empty and full positions are calibrated to your sender and it works out the values in between.

Do I need a PC so set up the Evodash?

No, all of the setup is done through the menu system in the Evodash itself.

Does the engine need an ECU?

No, you can pick up the revs from an ECU or the negative side of the coil pack.

What comes in the kit?

The Evodash, customised to your specification, dash wiring loom, oil pressure sensor, temperature sensor and speed sensor. Also included is a detailed set of instructions on how to install, calibrate and use the Evodash.

Is the Evodash waterproof?

No it is not waterproof, but it will survive occasional light showers.
